10 Ton Heavy Duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV

Name: 10 Ton Heavy Duty Omnidirectional Transfer Cart Laser Magnetic Navigation Lifting AGV
Brand: Remarkabl
Price: 1 USD

Wholesale 10 Ton Heavy Duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV from china suppliers

Brand Name : Remarkabl

Model Number : RWP/KPX/RGV/AGV

Certification : ISO9001,ISO14001,ISO45001,CE

Place of Origin : china

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 500 sets/year

Delivery Time : 45days

Packaging Details : The whole cart will be packed by the tarp, the parts will be packed by polywood case.

name : Electric Transfer Cart

Power Supply : Maintenance Free Battery /lithium Battery/cable

Navigation : Laser+ Magnetic Navigation

Brake : Electric Motor Brakes

Control Method : Remote Control/ Hand Operate Pendant/PLC

Warranty : 1 Year

Safety Features : Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor

feature : Omnidirectional movement/Lifting/Clamping device/customized

Move Way : Forward,backward,and can rotate 360 degrees in place ,turning while driving with no stop

Application : Industrial Filed, Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc

Running speed : 0-25 M/min(Adjustable)

Key words : Industrial Heavy Duty Transport Cart,electric transport cart,battery transfer trolley，battery transfer cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart

Steering mode : Differential , hydraulic, steering wheel Omnidirectional movement

model : transfer cart with omni wheel /Trackless transfer cart RWP/AGV

Contact Now

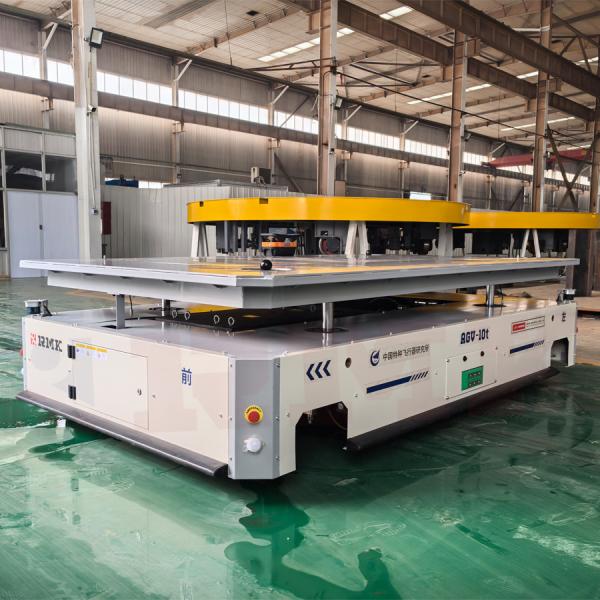

10 Ton Heavy Duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV

^{10 ton heavy duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV is an automated transfer cart that adopts a hybrid navigation mode combining laser navigation and magnetic navigation. It is used for the transportation of equipment and materials in automated workshops, production lines and laboratories.}

^{The AGV is an automated transportation equipment widely applied in the industrial field. It can automatically travel along the specified guiding paths, and there are various guiding methods, including electromagnetic guidance, magnetic tape guidance, optical guidance and laser guidance, etc.}

^{For example, in a logistics warehouse, the AGV can move goods from the receiving area to the storage area or from the storage area to the shipping area according to the instructions of the warehouse management system (WMS). It can greatly improve the efficiency and accuracy of logistics operations and reduce the errors and labor intensity of manual operations.}

10 Ton Heavy Duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV

10 Ton Heavy Duty Omnidirectional Transfer Cart Laser+ Magnetic Navigation Lifting AGV

^{Technical parameters for trackless electric transfer carts}
^{rated load(t)}	⁵	¹⁰	¹⁵	²⁰	³⁰	⁴⁰	⁵⁰	¹⁵⁰
^{impacted rated load(t)}	^7.5	¹⁵	^22.5	³⁰	⁴⁵	⁶⁰	⁷⁵	²²⁵
^{structure of frame}	^{steel plates welded, beam structure}
^{max. wheel load(t)}	^2.8	^4.3	^4.8	^5.6	^7.7	¹⁰	¹²	²⁷
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{ground requirement}	^{cement floor}					^{steel plate ground}
^{table size(mm)}	^3000×2000	^3600×2000	^4000×2200	^4500×2200	^5000×2200	^5500×2300	^6000×2300	^10000×3000
^{height of the whole cart(mm)}	⁴⁵⁰	⁵³⁰	⁶⁰⁰	⁶⁰⁰	⁶⁵⁰	⁷⁰⁰	⁷⁰⁰	¹²⁰⁰
^{ground clearance(mm)}	⁵⁰							⁷⁵
^{wheels base(mm)}	¹⁵⁰⁰		¹⁷⁰⁰			¹⁸⁰⁰		²⁰⁰⁰
^{axles distance(mm)}	²⁵⁰⁰	³¹⁰⁰	³⁴⁰⁰	³⁹⁰⁰	⁴³⁰⁰	⁴⁸⁰⁰	⁵²⁰⁰	¹⁰⁰⁰⁰
^{turning radius(mm)}	²⁵⁰¹	³¹⁰¹	³⁴⁰¹	³⁹⁰¹	⁴³⁰¹	⁴⁸⁰¹	⁵²⁰¹	¹⁰⁰⁰¹
^{turning type}	^{turning while driving with no stop}
^{control method for turning}	^{control button}
^{turning structure}	^mechanical
^{motor power(Kw)}	^3.5	⁵	⁶	⁷	¹⁰	¹²	¹⁵	¹⁵
^{wheel diameter(mm)}	^{Ф300 x 4}	^{Ф350 x 4}		^{Ф400 x 4}	^{Ф400 x 6}	^{Ф500 x 6}		^{Ф600 x 8}
^{wheel material}	^{ZG55+hydropur ture}
^{running speed(m/min)}	^0-15					^0-12
^{brake principle}	^{electric magnetic brake}
^{operation method}	^{with wire or no wire}
^{battery model}	^{D-250 x 24}	^{D-33 x 24}	^{D-400 x 24}	^{D-440 x 24}	^{D-250 x 36}	^{D-330 x 36}	^{D-440 x 36}	^{D-600 x 36}
^{battery maintenance}	^{free of maintenance}
^{charger's installation}	^{installed on cart}				^split-type
^{charger function}	^{automatic charging}
^{radar control}	^{3-0.3m, automatic stop for obstacles}
^{warning equipment}	^{sound and light}
^{other functions}	^{turning light, night light and power display}
